173Ah Industrial Lithium Pack
Maintenance-free LiFePO4 technology eliminates battery watering and acid leakage. Integrated Smart BMS ensures continuous cell balance, extended cycle life, and thermal protection under load.
Product Overview

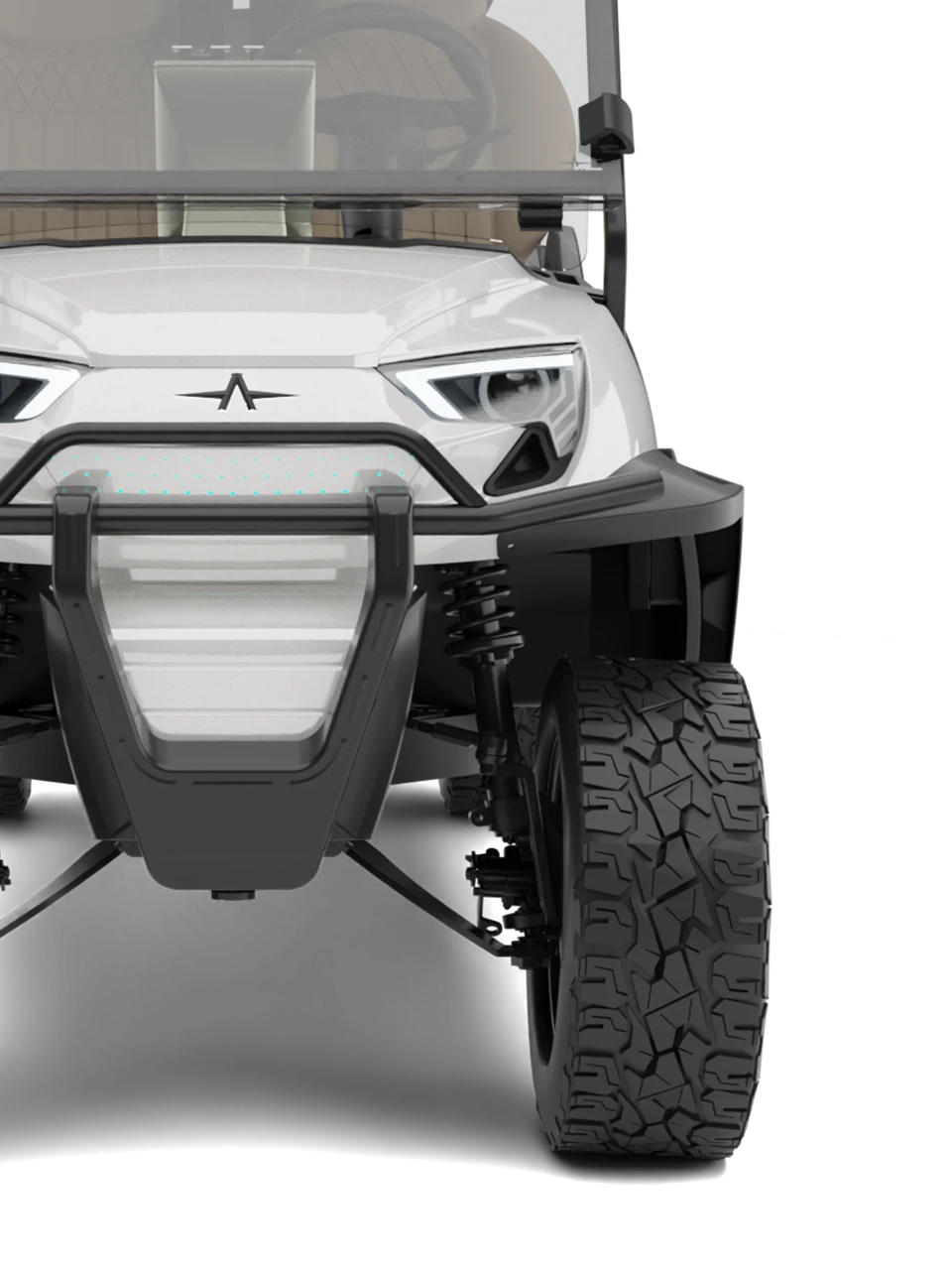

High-Capacity Passenger Shuttle with Elevated Clearance
Engineered by golf cart manufacturing veterans with over 70 years of combined industry experience, the Atlas MAX platform delivers uncompromised power, passenger comfort, and structural rigidity for commercial operators and high-capacity transport requirements.
Equipped standard with a high-capacity 173Ah lithium-ion battery system, an upgraded 5KW AC Nidec drive motor, and a heavy-duty lifted suspension, the Atlas MAX negotiates steep inclines and rugged terrain while effortlessly transporting up to 6 adults.
- Occupant Capacity: 6 Passengers
- Standard Battery Pack: 173Ah LiFePO4 Lithium
- Drive Motor & Power: 5KW AC Motor / 400A Nidec Controller
- Chassis Construction: Corrosion-Resistant Welded Aluminum
- Commercial Warranty: Lifetime Powertrain Warranty*
Engineering Rigor
Built to Exceed Commercial Fleet Requirements
From factory-installed safety hardware to long-range battery systems, every component of the Atlas MAX is built to lower total cost of ownership (TCO) for fleet management.

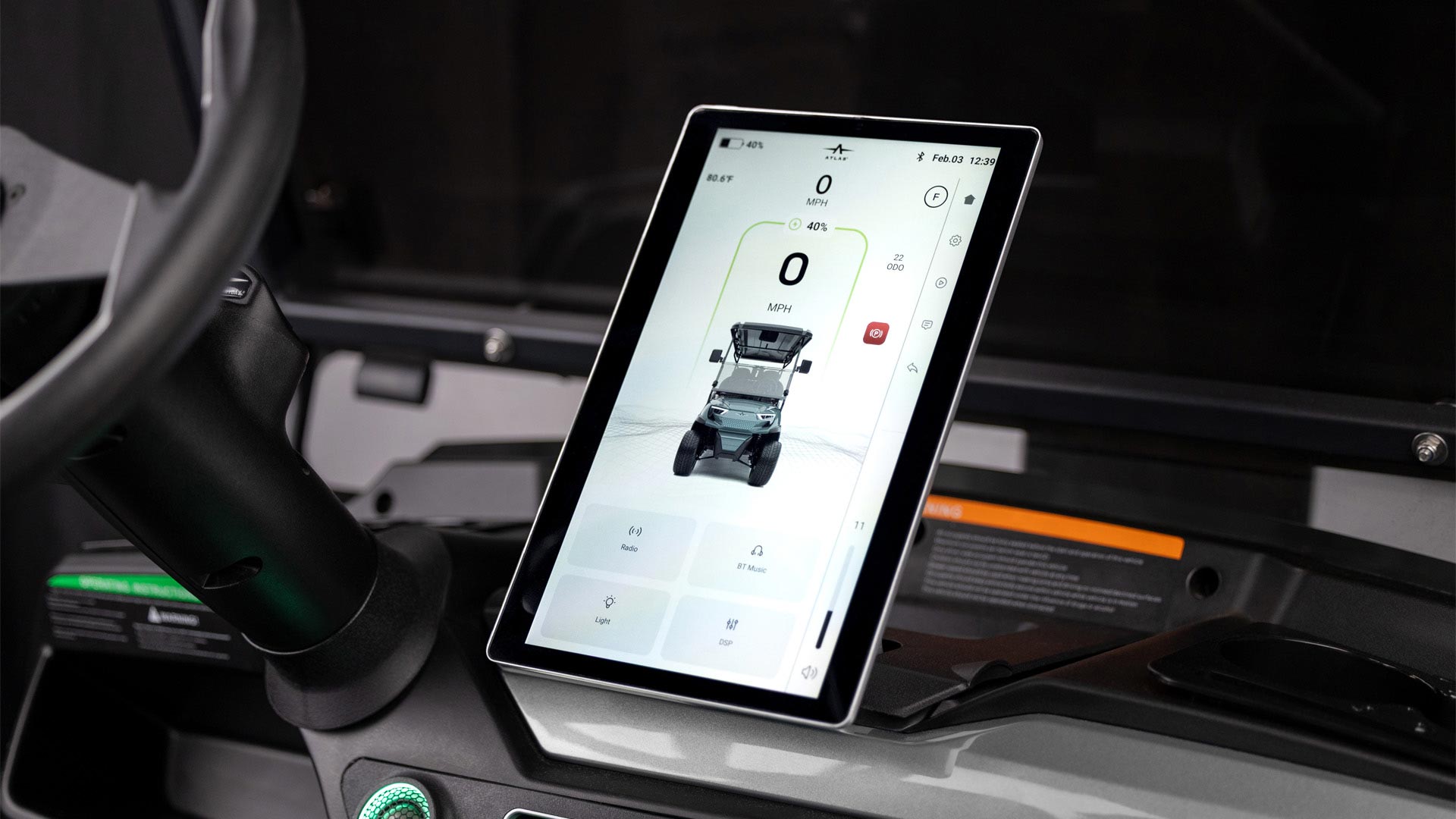

12.5" HD Touchscreen Cockpit

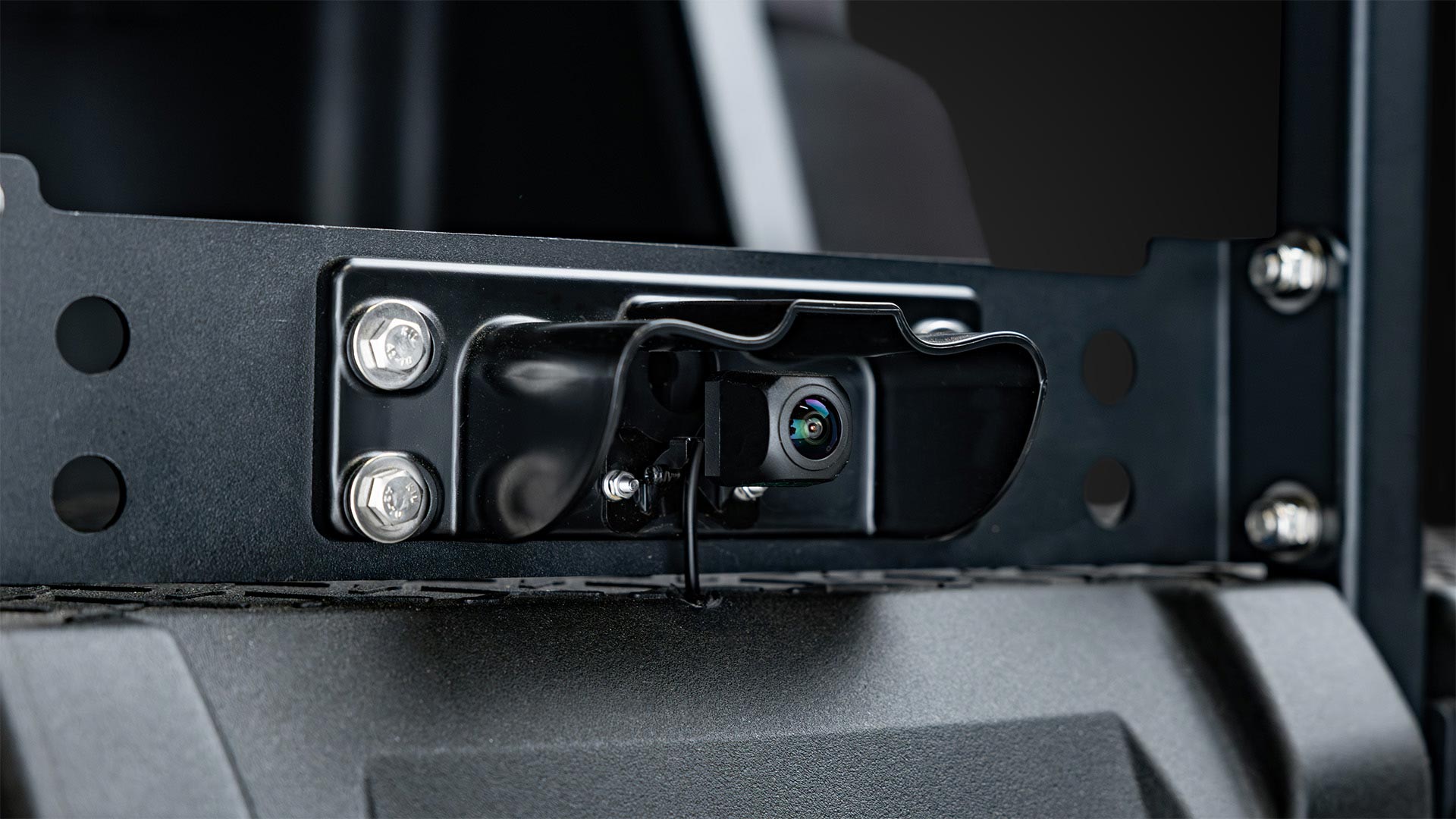

IP65-rated sunlight-readable display integrates real-time speed, battery state-of-charge, diagnostics, Bluetooth audio, hands-free media, and integrated rear-view camera feeds.
Commercial Safety Architecture
Features 4-wheel hydraulic disc brakes, automatic electronic parking brake, DOT 3-point seatbelts for all 6 seating positions, and full LED street-legal lighting packages.

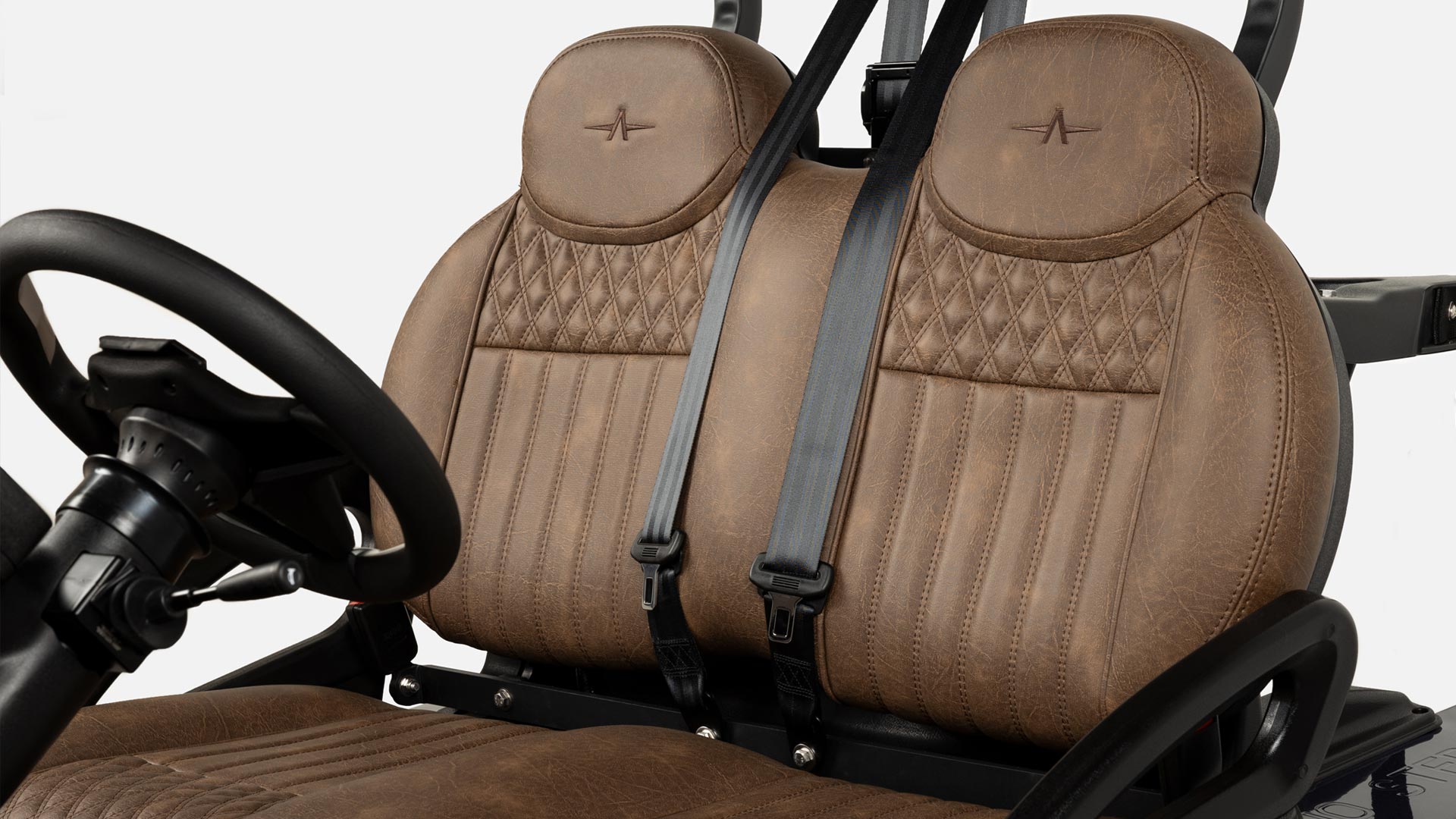

Plush 6-Passenger Seating
Ergonomically contoured double-diamond stitched seats covered in UV-resistant marine-grade vinyl. Includes flip-flop rear seat conversion with integrated cargo bed capability.

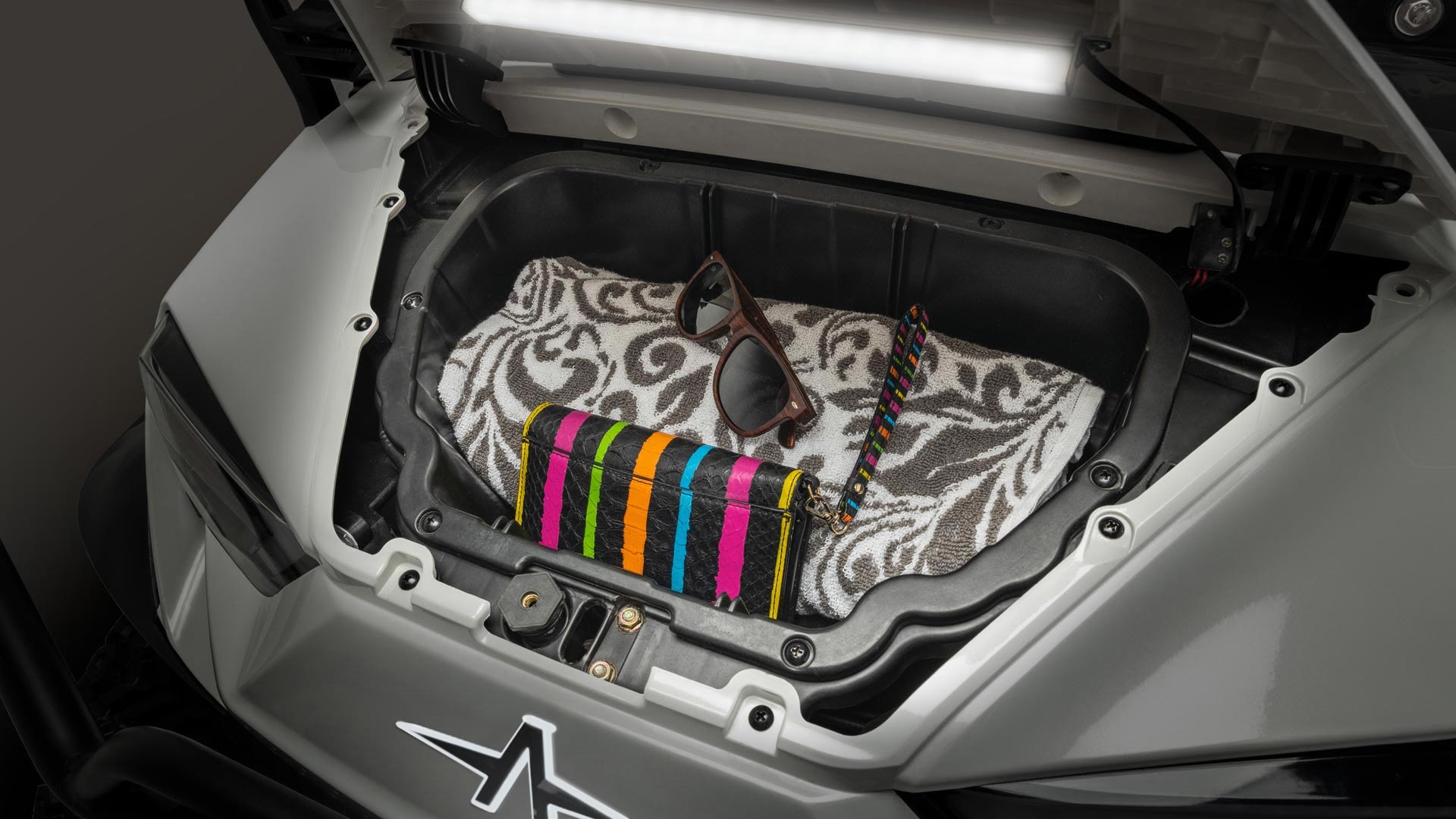

Secure Fleet Storage Solutions
Integrated lockable front trunk (frunk) and dash storage compartments protect tools, luggage, and personal valuables across multi-user commercial environments.

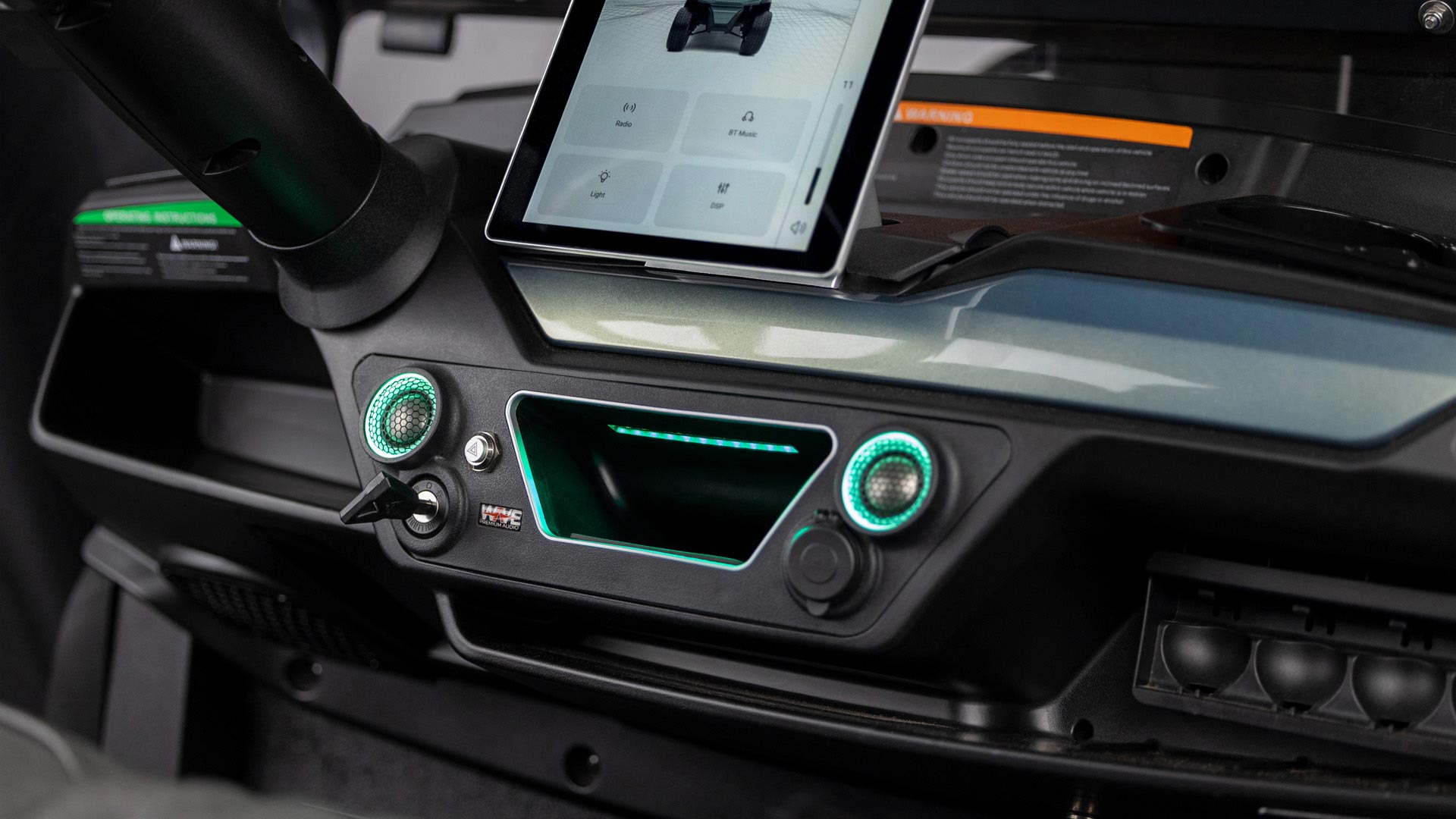

Wireless Power & Connectivity
Built-in wireless device charging pad, dual USB power ports, and premium titanium-tweeter audio system keep operators and passengers fully connected.
Factory Data Sheet
Atlas MAX Technical Specifications
Standard engineering specifications for international commercial procurement and dealer inventory planning.
| Category | Specification Parameter | Standard Factory Feature |
|---|---|---|
| Powertrain & Electrical | Drive Motor | 5KW High-Torque AC Nidec Motor |
| Motor Controller | 400-Amp Programmable Nidec AC Controller | |
| Battery Capacity | 173Ah LiFePO4 Lithium-Ion (105Ah optional) | |

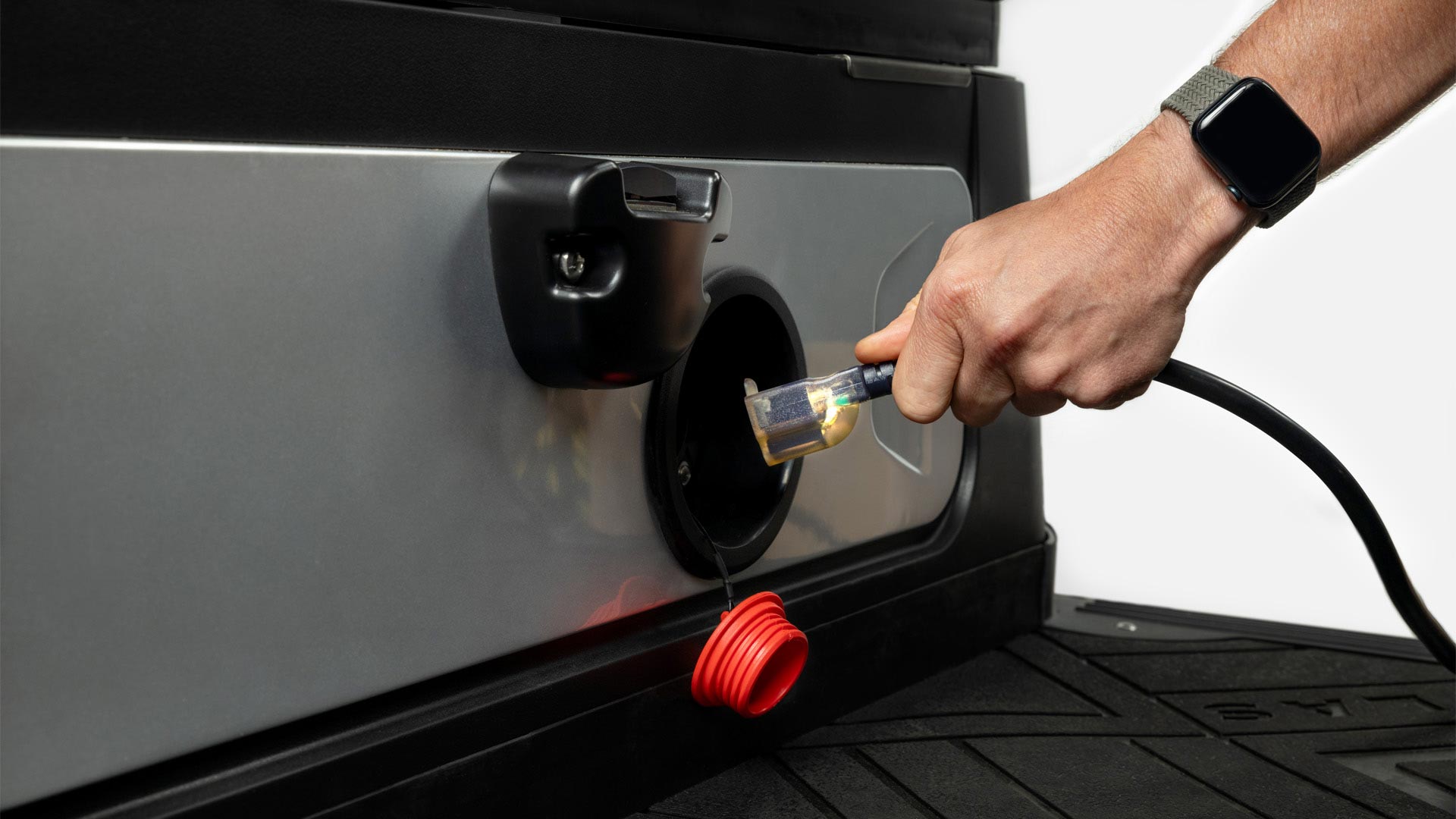

| On-board Charger | 110V-240V Smart Charger (20A Output) | |
| Dimensions & Capacity | Overall Length x Width x Height | 145.7 in (3700 mm) x 52.3 in (1328 mm) x 80.7 in (2050 mm) |
| Wheelbase | 99.0 in (2514 mm) | |
| Curb Weight | 1,389 lbs (630 kg) | |
| Payload Capacity | 1,200 lbs (544 kg) | |
| Occupant Rating | 6 Persons (Front 2 / Mid 2 / Rear 2) | |
| Braking & Suspension | Primary Brakes | 4-Wheel Hydraulic Disc Brakes |
| Parking Brake | Automatic Electromagnetic Parking Brake | |
| Suspension System | Lifted Heavy-Duty Front Coil-Over Shocks & Rear Leaf Springs | |
| Wheels & Clearance | 14" Premium Aluminum Wheels with All-Terrain Tires | |
| Warranty Terms | Powertrain Warranty | Lifetime Powertrain Coverage* |
| Lithium Battery Warranty | 10-Year Factory Warranty* | |
| Bumper-to-Bumper | 3-Year Limited Vehicle Warranty* |
*Warranty terms valid for 2026 model year export and dealership distributions. Specifications subject to custom enterprise ordering.

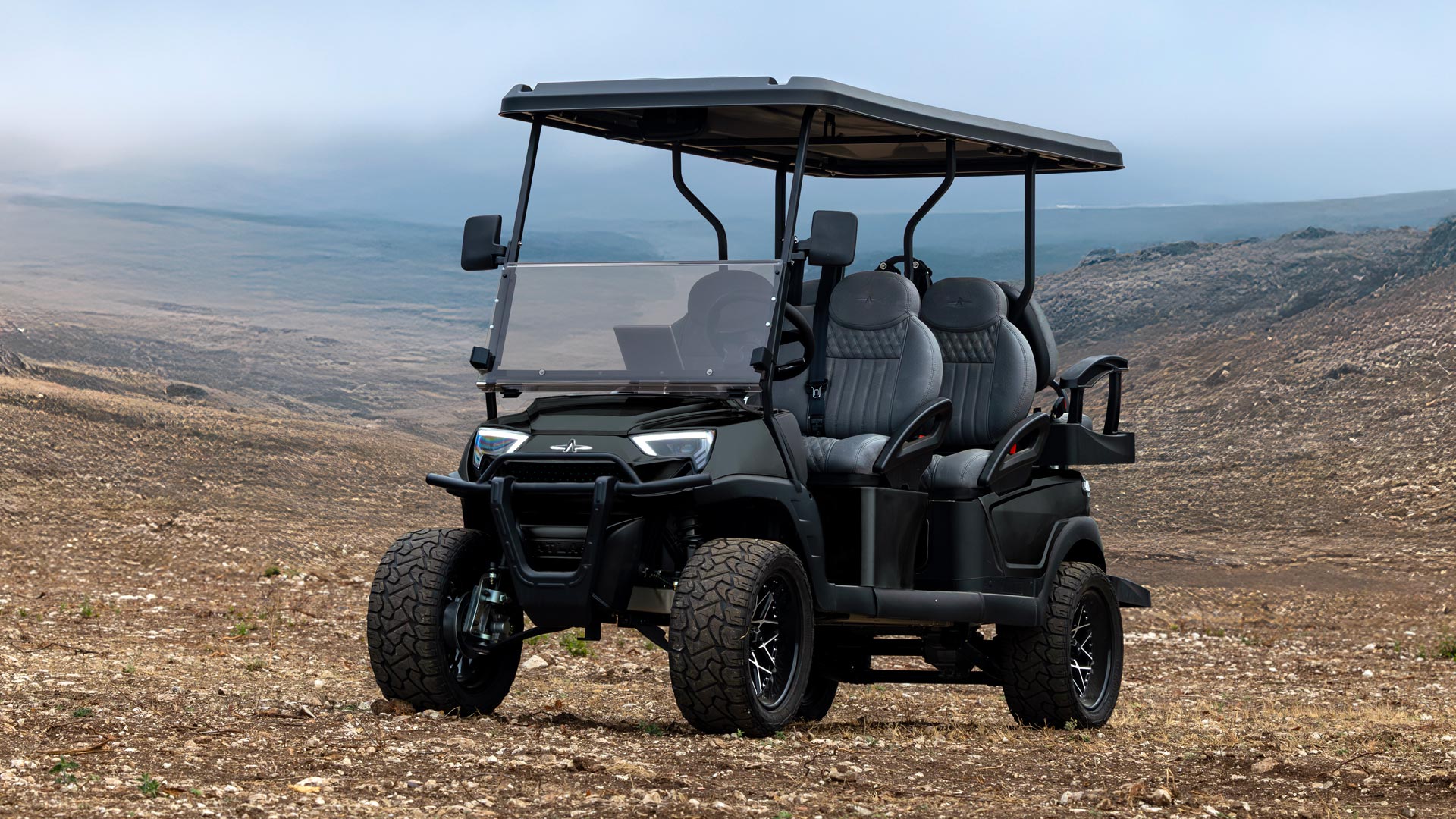

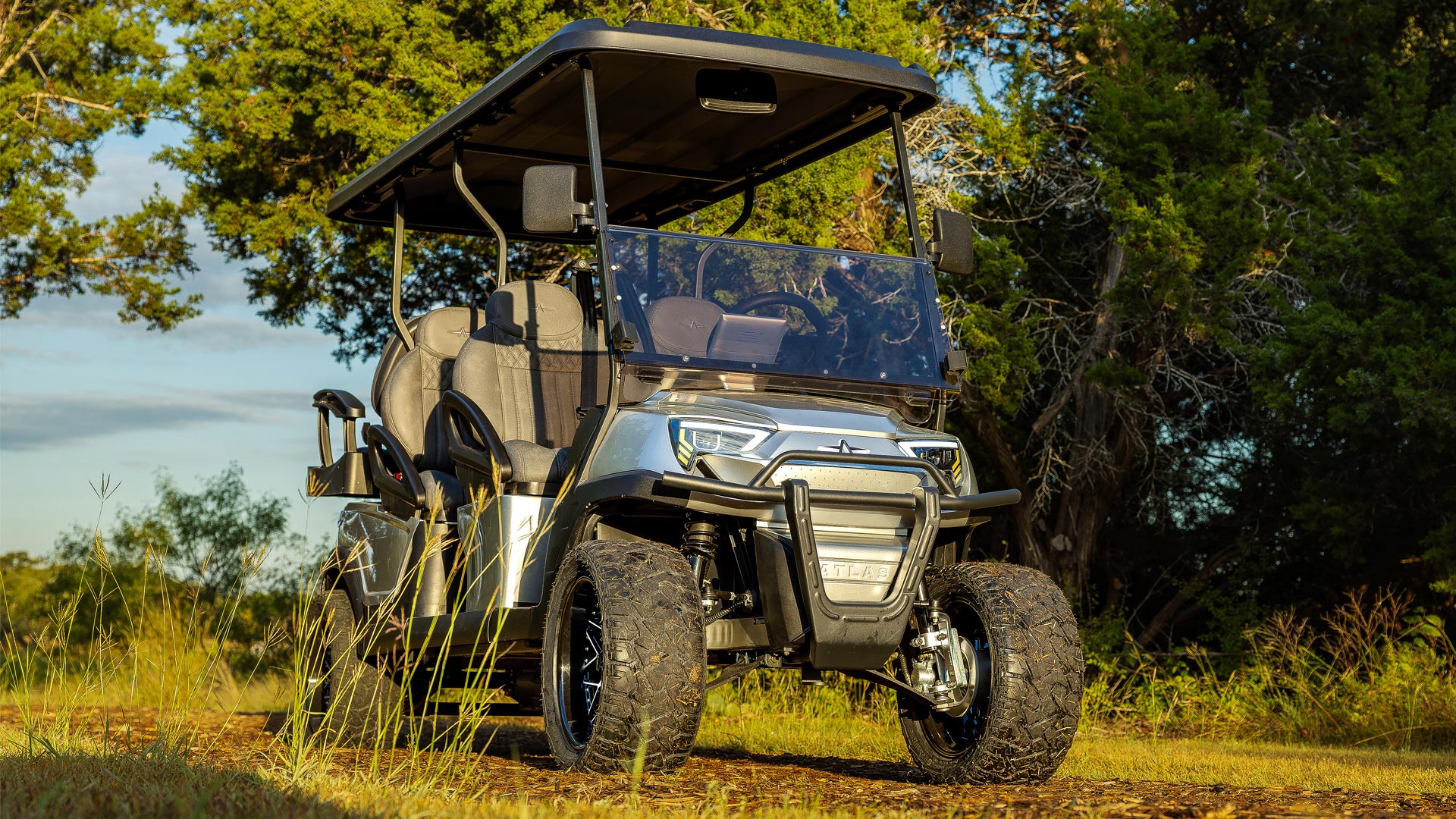

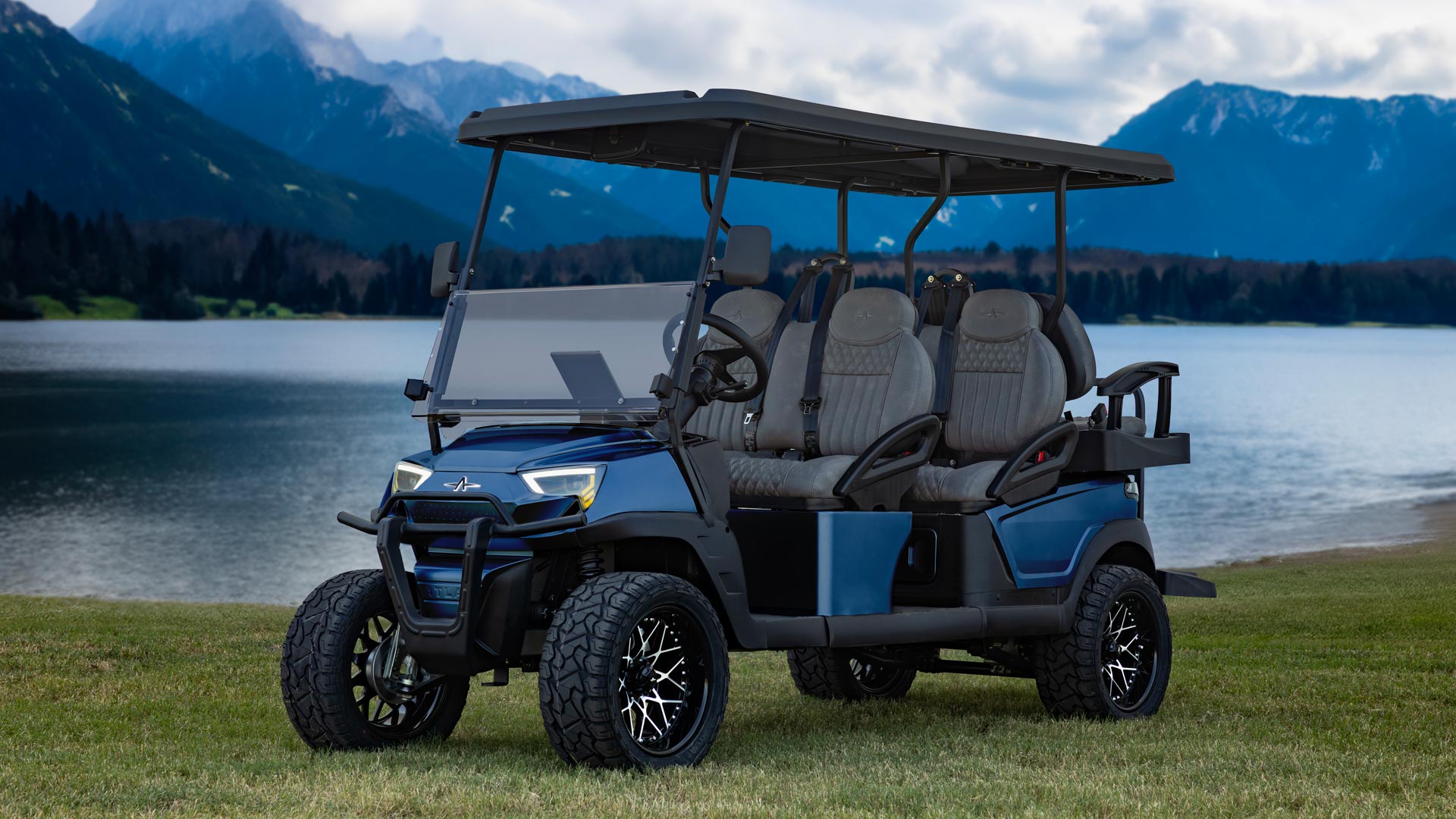

Visual Showcase
Atlas MAX Gallery
