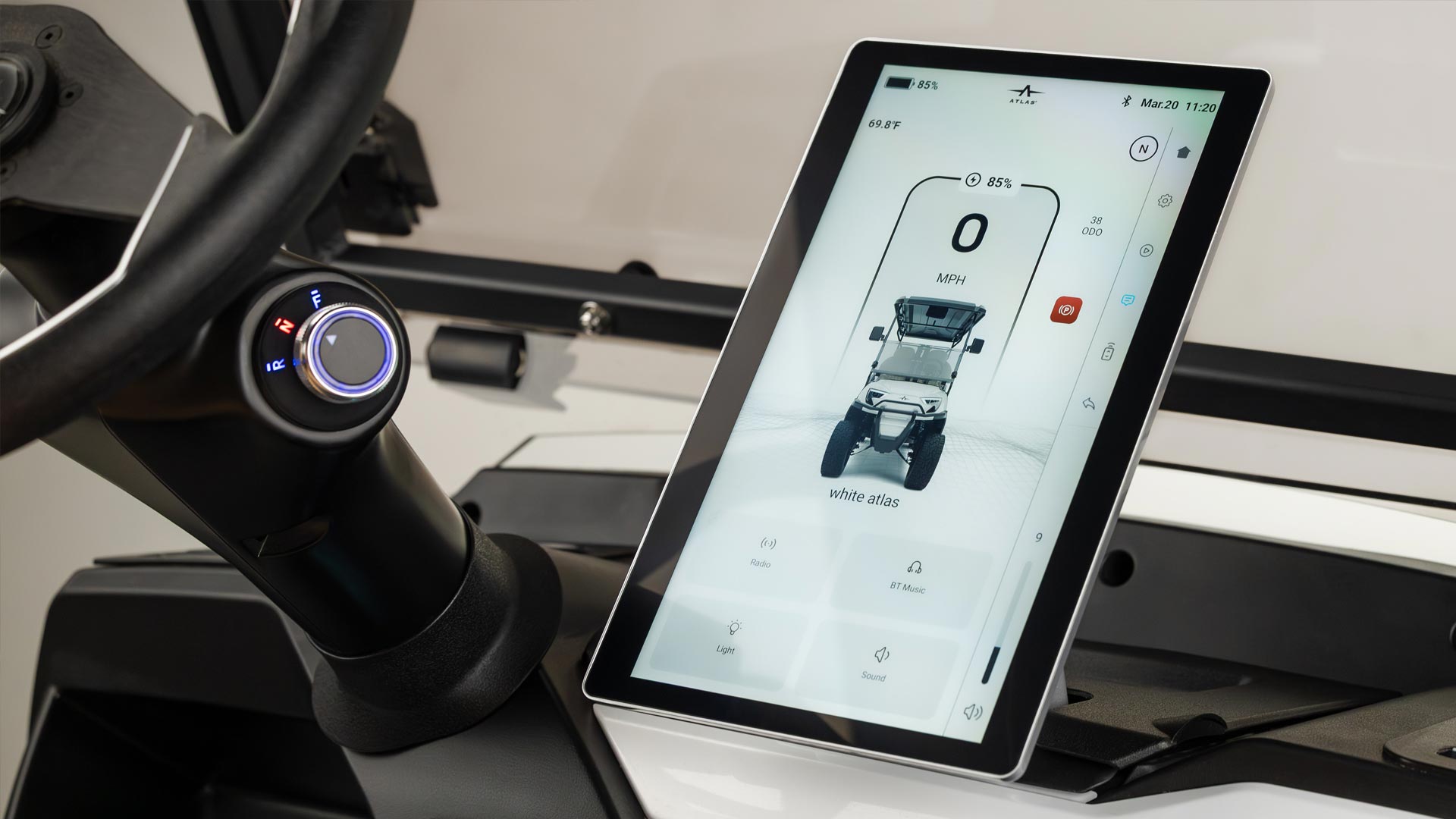

12.5" HD Touchscreen Command Center
Monitors vehicle telemetry, battery state of charge, real-time speed, dynamic backup camera feeds, and custom lighting profiles from a single weatherproof high-definition interface.
Flagship Innovation
The Standard for Next-Gen Electric Carts
The Atlas ONE™ redefines personal and fleet transportation by integrating automotive-grade engineering with intuitive digital control. Developed by industry veterans with over 70 years of collective engineering experience, this platform bridges the gap between commercial reliability and luxury personal mobility.
Equipped standard with a massive 173Ah lithium-ion power unit, a 5KW AC drivetrain, and an integrated 12.5-inch HD touchscreen, the Atlas ONE™ delivers unmatched performance, extended range, and low total cost of ownership for commercial fleets, resorts, and international distributors.
173Ah
Lithium Pack
5KW
AC Drive Motor
12.5"
HD Display
Lifetime
Drivetrain Warranty
Engineered Without Compromise
Key Hardware & Cabin Features
Every component is engineered to commercial standards, providing international importers and fleet operators with factory-backed durability, simple maintenance, and high end-user satisfaction.

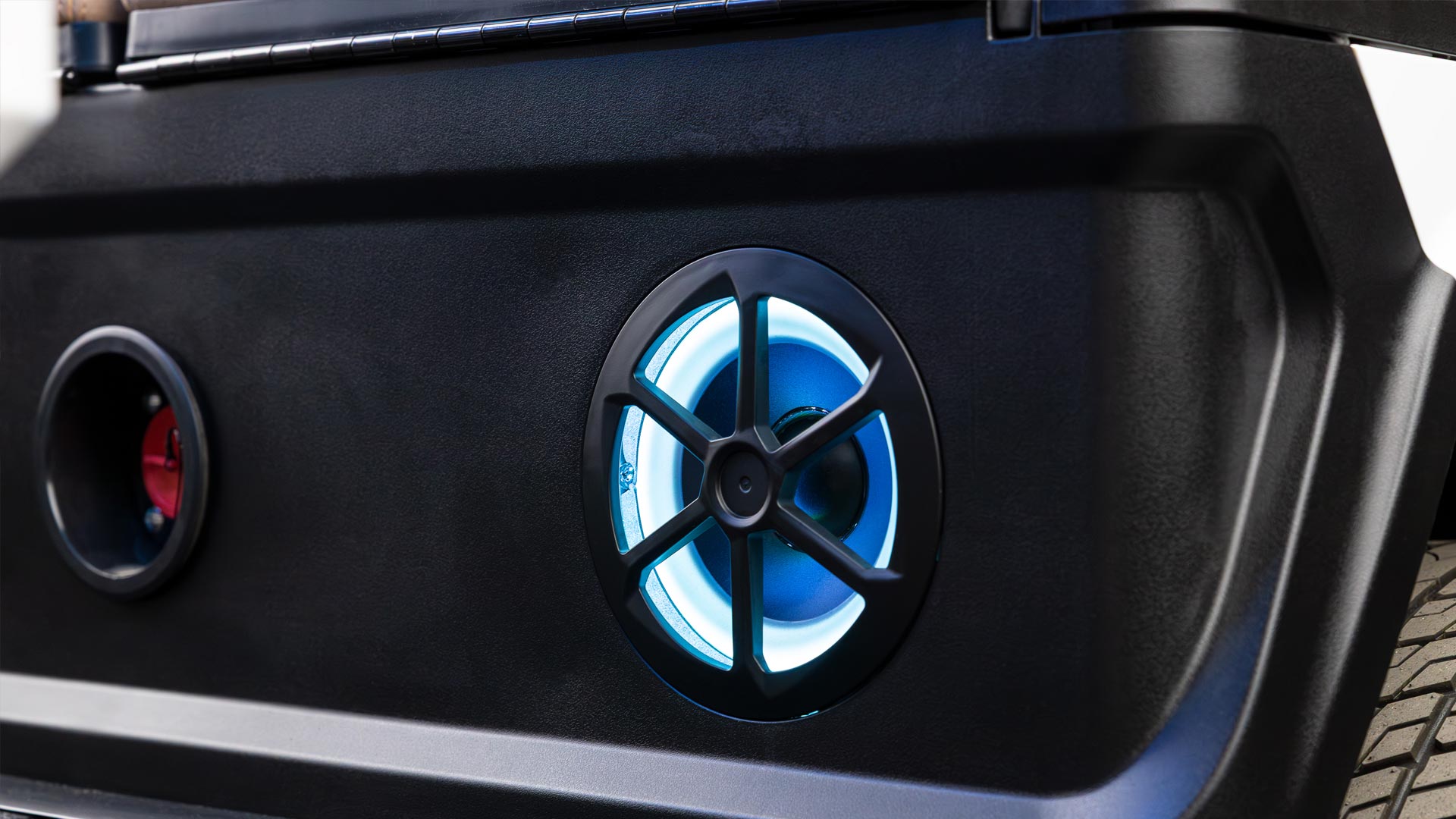

Atlas WAVE™ Integrated Audio
Delivers immersive audio performance through 14 high-performance speaker zones, featuring custom equalizer adjustments, Bluetooth connectivity, and hands-free phone integration.

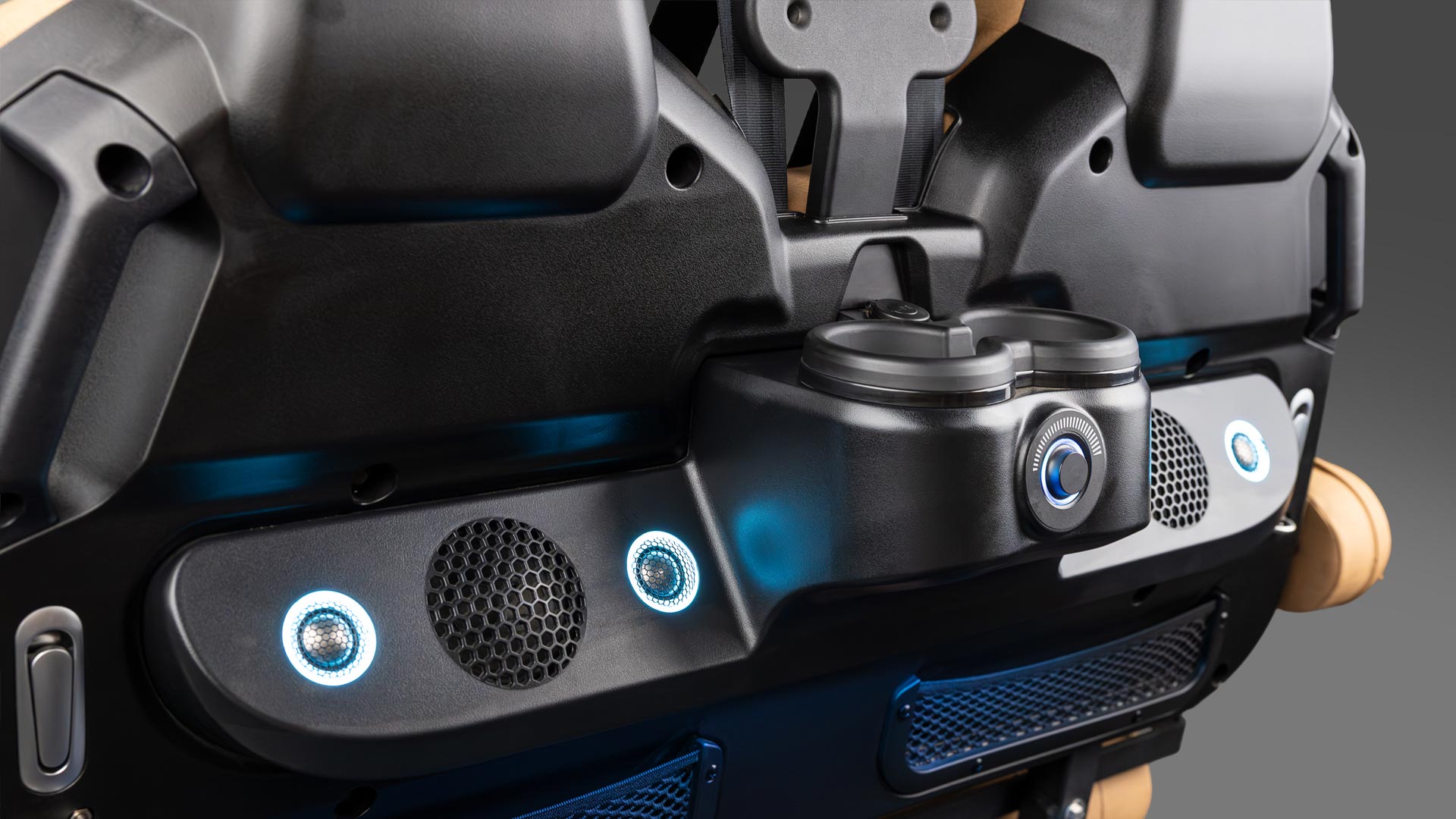

Enhanced Passenger Ergonomics
Thoughtfully outfitted with rear-facing audio controls, integrated storage compartments, USB charging ports, dual bag hangers, and double-diamond stitched upholstery.

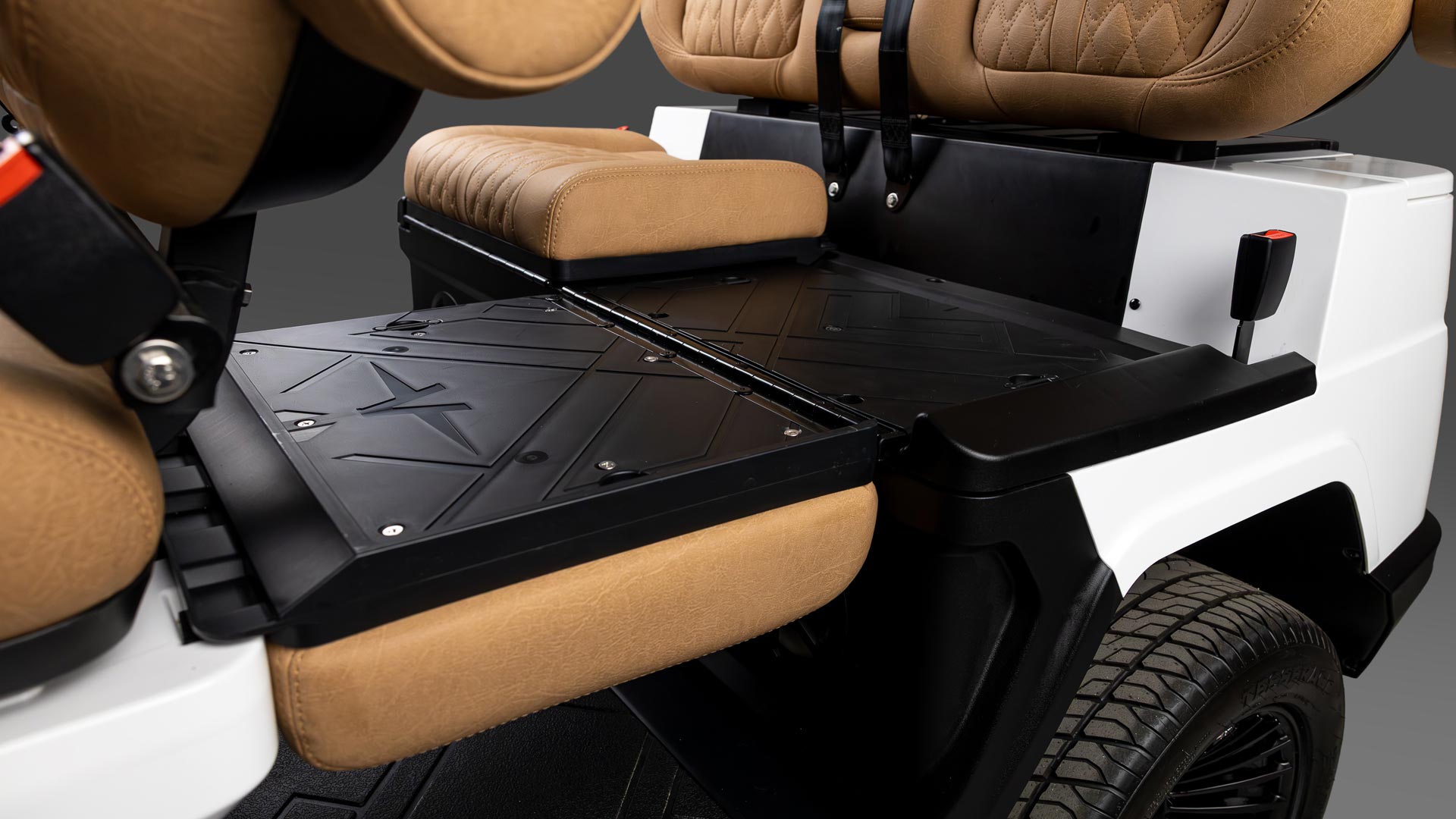

Convertible Utility Cargo Deck
Transforms from 4-passenger transport to a heavy-duty utility vehicle within seconds. Features split-folding rear seating and 14 integrated cargo tie-down points.

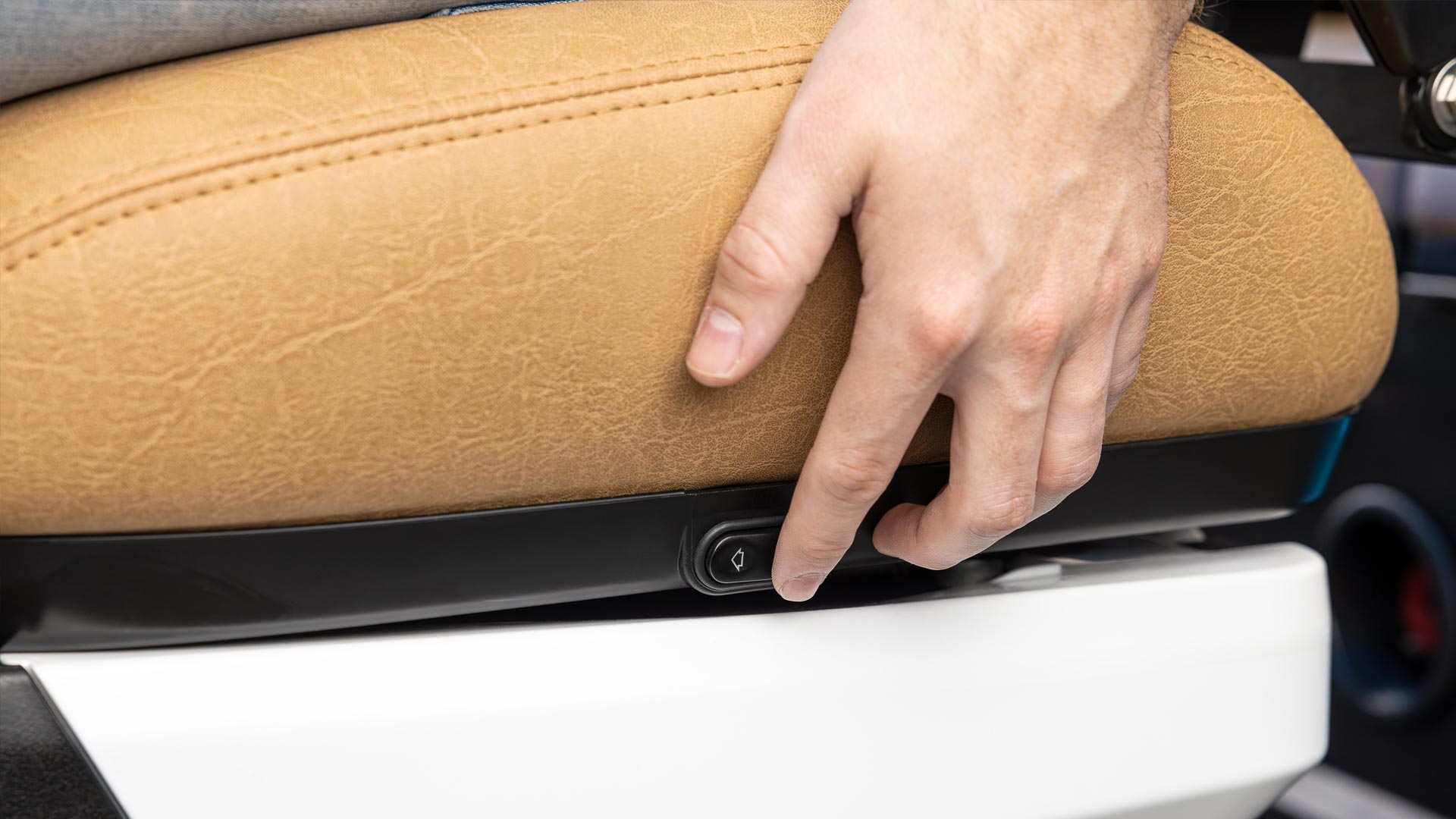

Power-Adjustable Front Seating
Allows drivers to fine-tune seating geometry effortlessly, expanding rear legroom or maximizing cargo space while improving ergonomics across diverse operator sizes.

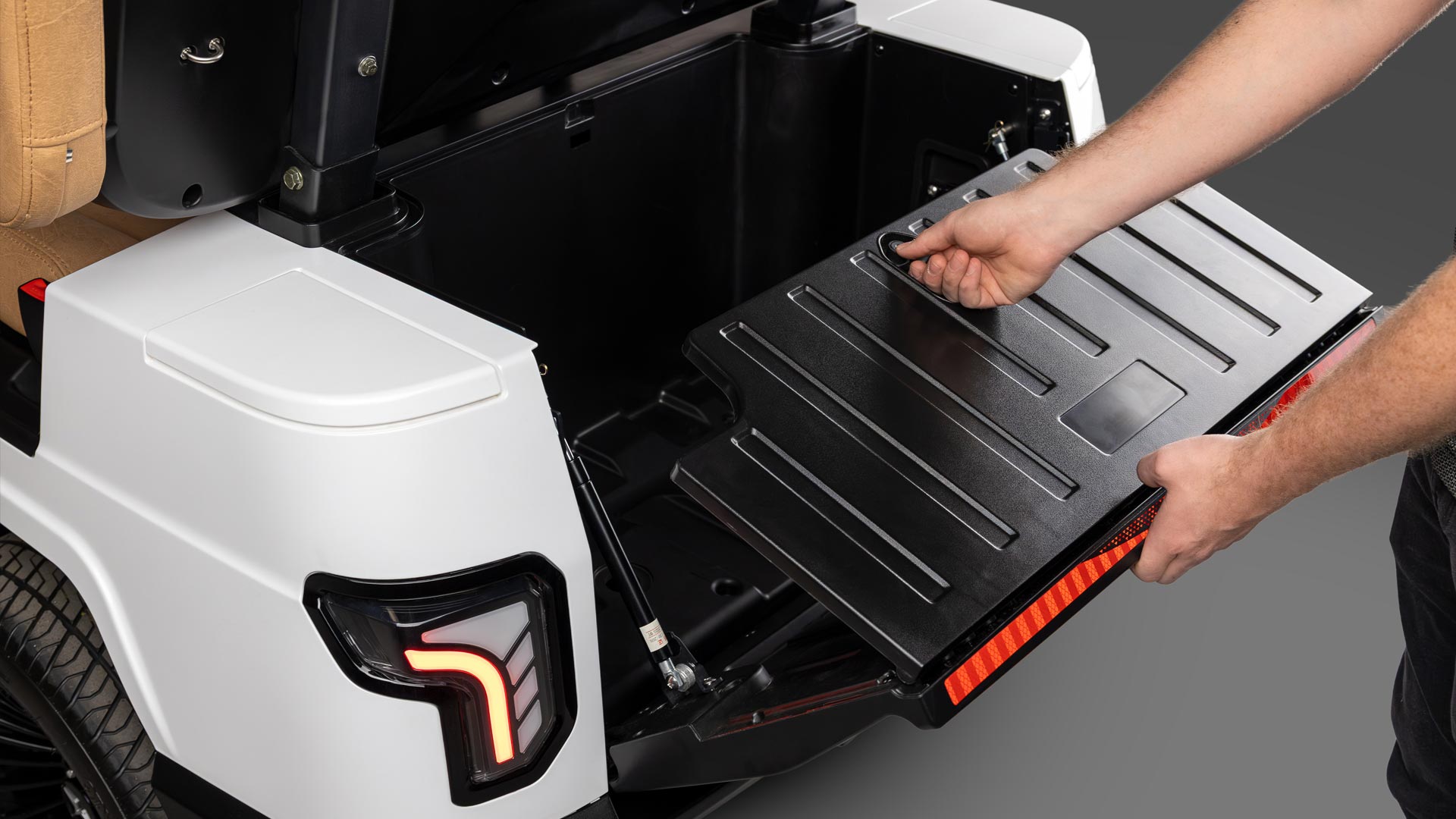

Lockable & Removable Tailgate
Combines secure trunk storage for personal equipment with removable tailgate functionality designed to accommodate full-size golf bags and bulky payload equipment.
Factory Data & Dimensions
Atlas ONE™ Technical Specification Sheet
Comprehensive engineering specifications for fleet evaluation, import compliance, and dealer floor plan planning.
| System Category | Technical Specification | Commercial Value & Standard Equipment |
|---|---|---|
| Battery System | 173Ah / 105Ah Lithium-Ion Pack | Maintenance-free, integrated smart BMS with cell-level balancing |
| Electric Motor | 5KW AC Nidec Motor | High-efficiency brushless design with heavy-duty thermal management |
| Motor Controller | 400 Amp Programmable Controller | Delivers smooth acceleration curve and energetic hill torque under load |
| Chassis & Frame | Rust-Proof Welded Aluminum Structure | Lightweight high-strength architecture ideal for coastal resort environments |
| Braking & Safety | 4-Wheel Hydraulic Disc Brakes | Equipped with automatic electronic parking brake & regen energy recovery |
| Occupant Capacity | 4 Passengers | Convertible rear bed setup with 916 lbs overall payload capacity |
| Overall Dimensions | 116.9" L x 49.8" W x 76.9" H | Wheelbase: 82.25 inches; Curb weight: 1,279 lbs |
| Lighting & Signals | Full Automotive LED Lighting | High/Low beam headlights, turn signals, brake lights & hazard warning |
| Charging System | On-board 110V-240V Smart Charger | Plugs into standard domestic or commercial outlets with standard charge cycle |
| Factory Warranty | Lifetime Drivetrain / 10-Yr Battery | Industry-leading coverage backed by factory-certified parts distribution |
Visual Showcase
Atlas Product Gallery
Explore the design language, color options, and terrain versatility of the Atlas platform line.
Interested in Commercial Supply or Dealership Opportunities?
Partner directly with Atlas Carts for volume fleet pricing, international distribution territories, technical documentation, and OEM manufacturing support.
Send an Inquiry
